Stone profiling machine

Contact Supplier

Description Send inquiry now

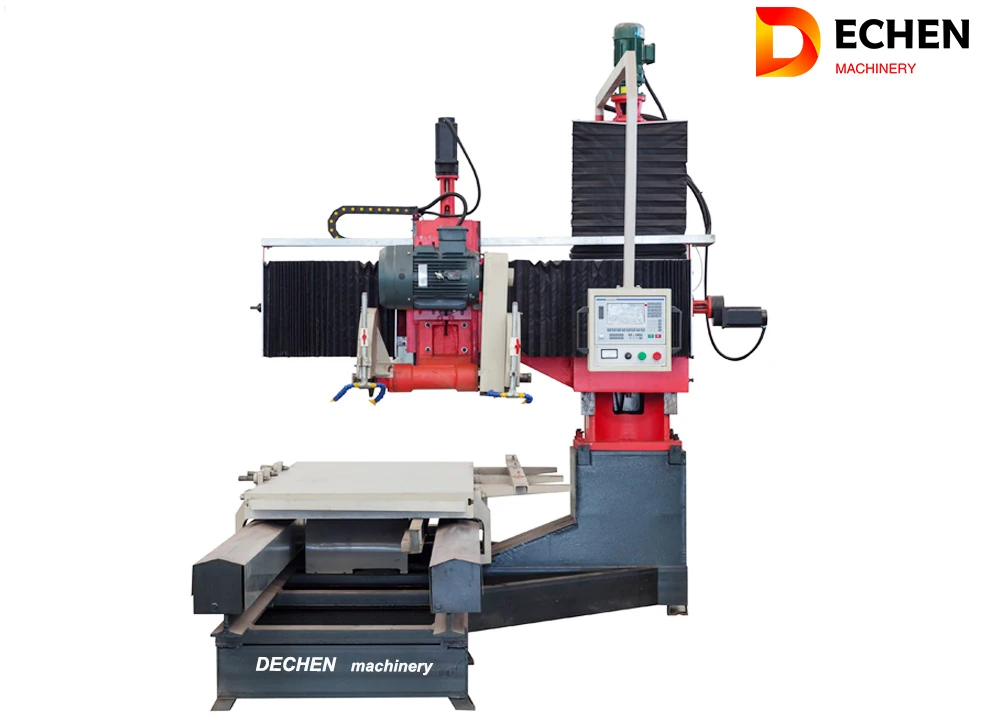

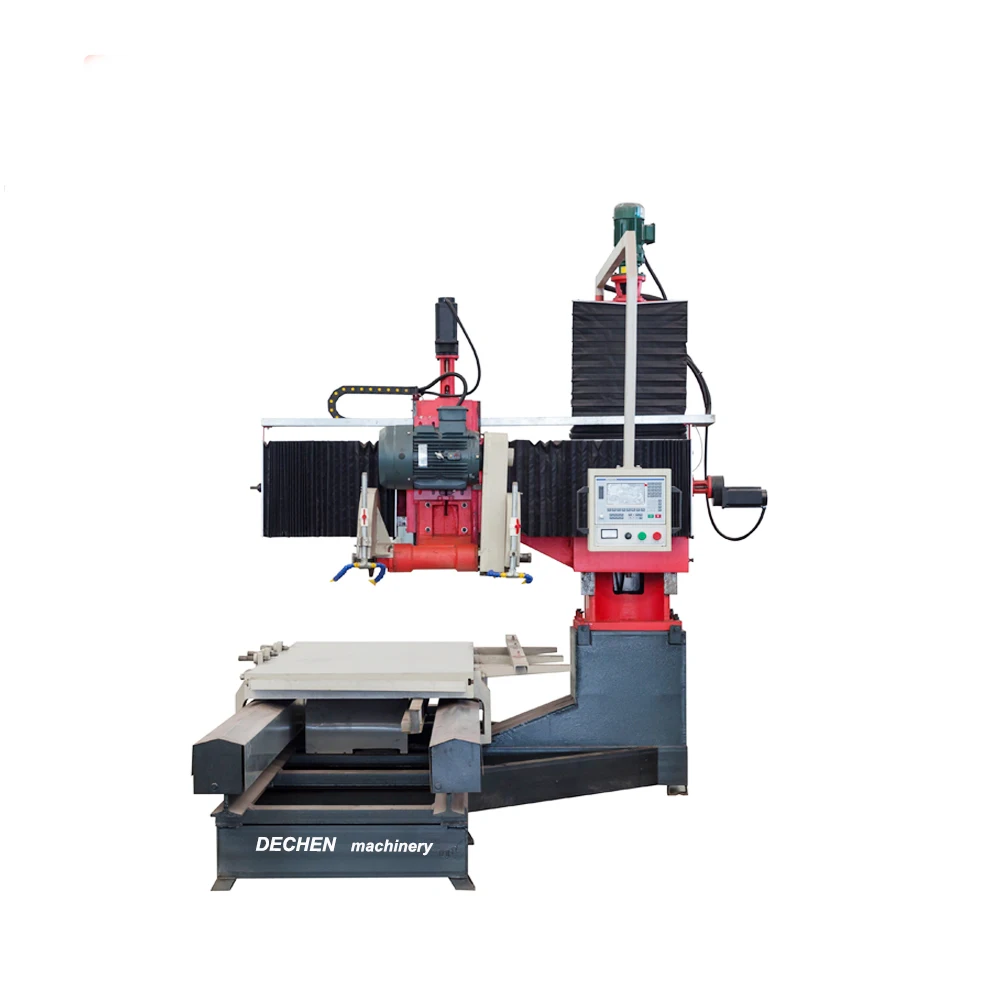

marble and granite cutting profile stone moulding machine

marble and granite cutting profile stone moulding machine



                       Enquire now! Click here!

One stop shopping, Dechen Machinery produces mining equipment, stone processing equipment, to provide customers with a complete stone processing plant design, provide complete after-sales service.

Product Description

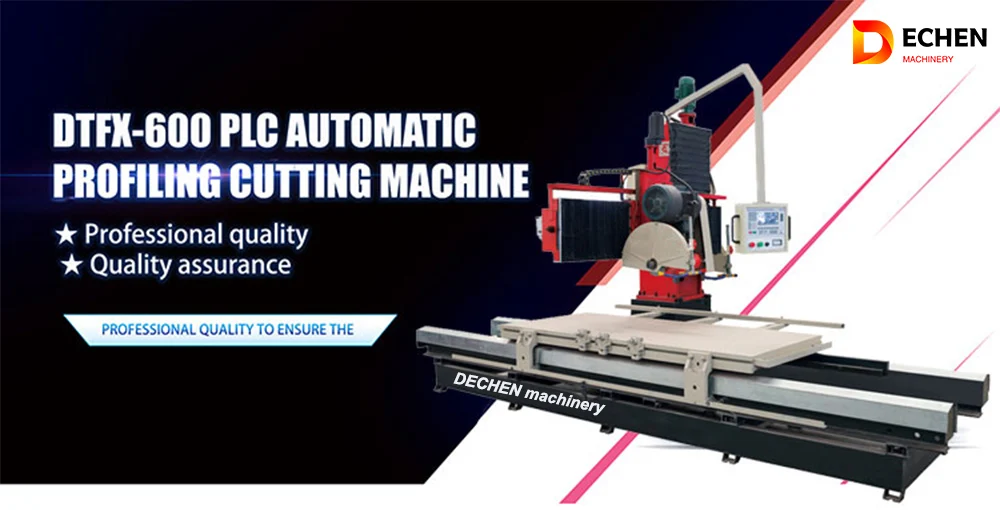

1)It is a machine to cut profiles and similar stone products.



2)It works on marble and granite, and can work on 2 pieces at the same time.



3)By using the Photo-Electric Profiling system, the shape stone machine for sale cuts profiles at 1:1 proportion with the wood template.



4)PLC controlled.



5) Heigh efficiency, easy operation, low production cost.

                                 Technical Parameters



Model

DTFX-600

Diameter of blade

350-600mm

Max.cutting size(L*W*H)

2500*1500*1000mm

Worktable size(L*W)

2500*1200mm

Interval between two blades

685mm

Main motor power

15kw

Total power

18.5kw

Overall dimension(L*W*H)

5000*2200*2400mm

Weight

3000kg



marble and granite cutting profile stone moulding machine





Feature

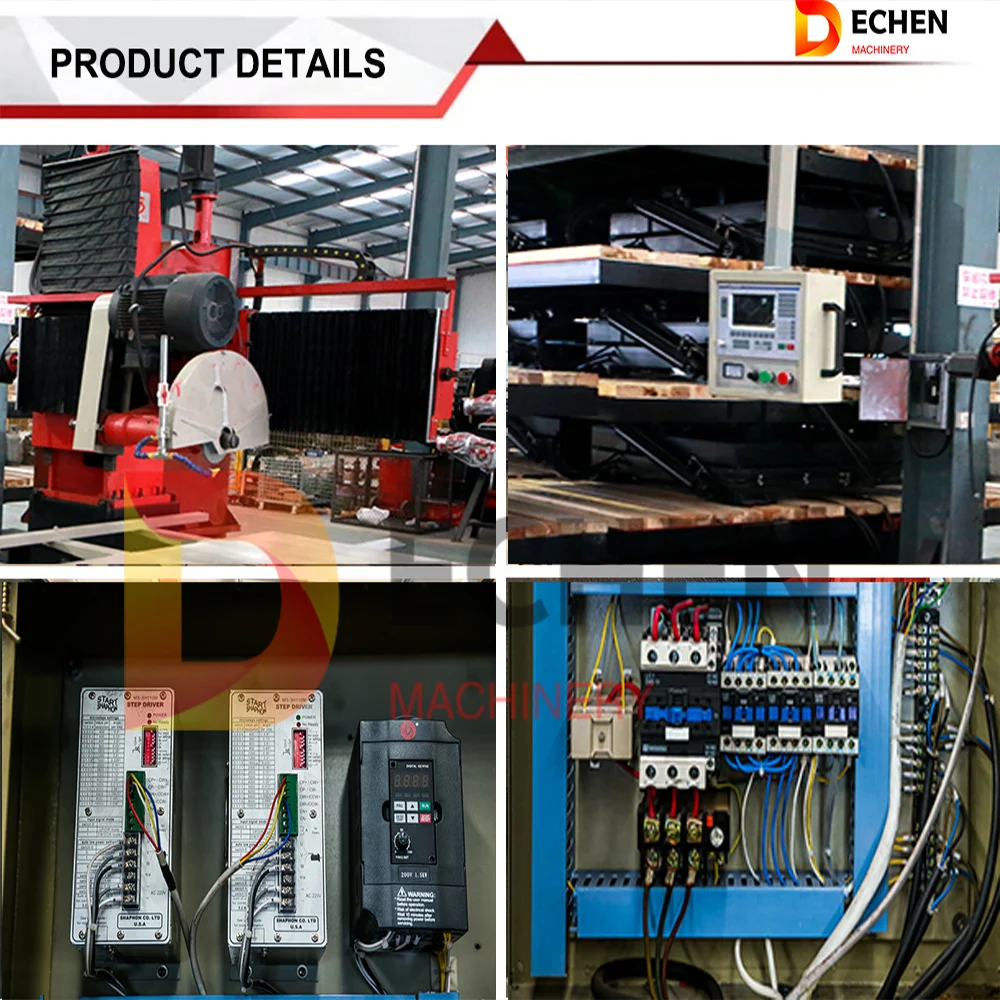

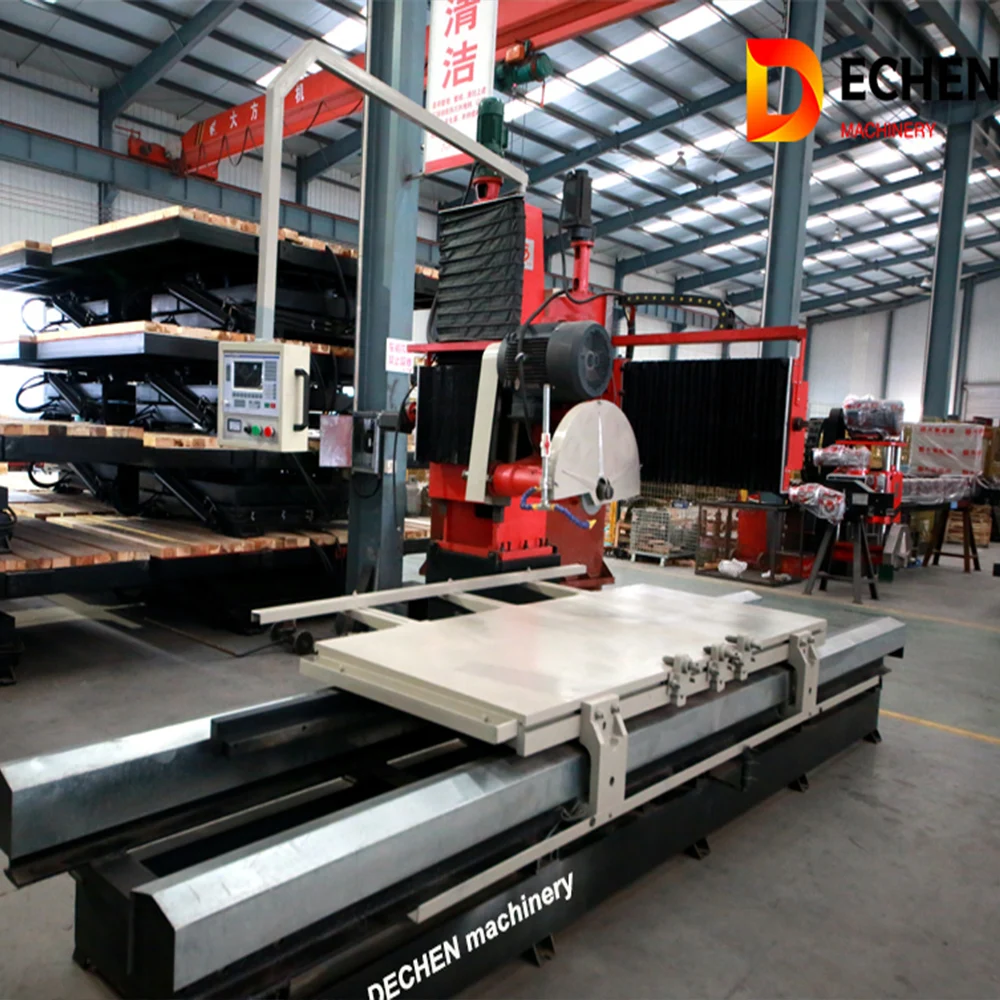

1)DTFX-600 single arm and CNC type copying machine’s cutting capacity and trolley speed are controlled by imported PC and variable-frequency drive (VFD).



2)With two blades cutting equipped in the front of machine, the double-blades cutting can be adopted in operation while the photoelectric detector is inspecting and the sensor switch is protecting during the cutting.



3) the machine is featured with high efficiency, steady performance, simple operation and highly-precision copying.



4)Easy to operate and stable.



5)Bigger worktable to accommodate more workpieces.



6)Big-blade design makes operation more efficient.

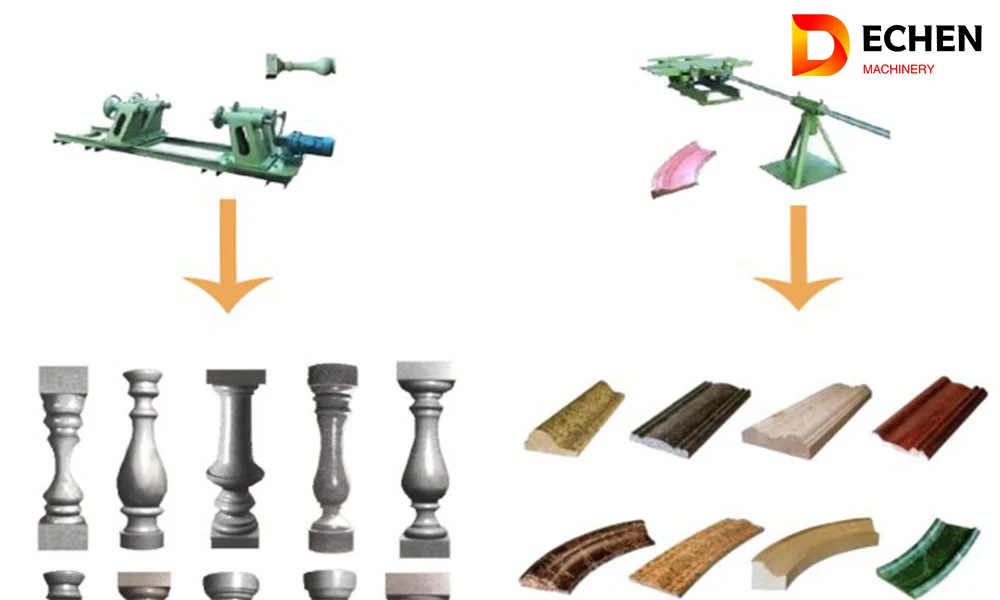

We have two kinds of tooling, which can be combined with the machine to produce different products.

marble and granite cutting profile stone moulding machine



Application

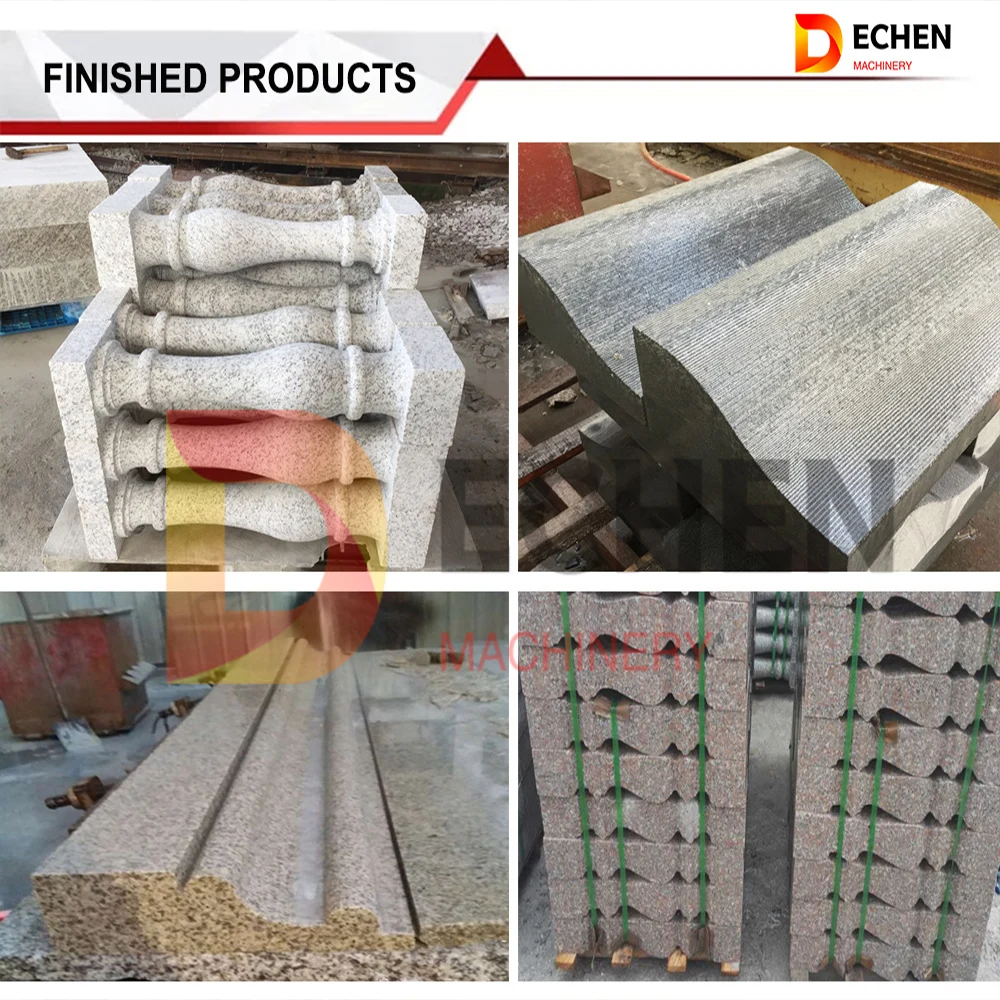

The machine is controled by system of 2D heterotype stone cutting,special for processing and designing heterotype stone,which enhance the working efficiency of 2D line cutting.Through the Man-Machine interface,enter the figure,after set the cutting point and finish automatically.It's featured by steady processing,fine surface and unitive shape.Expect for processing 2D line.It also can process arc stone line,column,chapiter,stylobate and vase etc.Double baldes design,which is effort halved,rdsult doubled.

marble and granite cutting profile stone moulding machinemarble and granite cutting profile stone moulding machinemarble and granite cutting profile stone moulding machine

One stop shopping, Dechen Machinery produces mining equipment, stone processing equipment, to provide customers with a complete stone processing plant design, provide complete after-sales service.More Information, Click Here!

Company Information

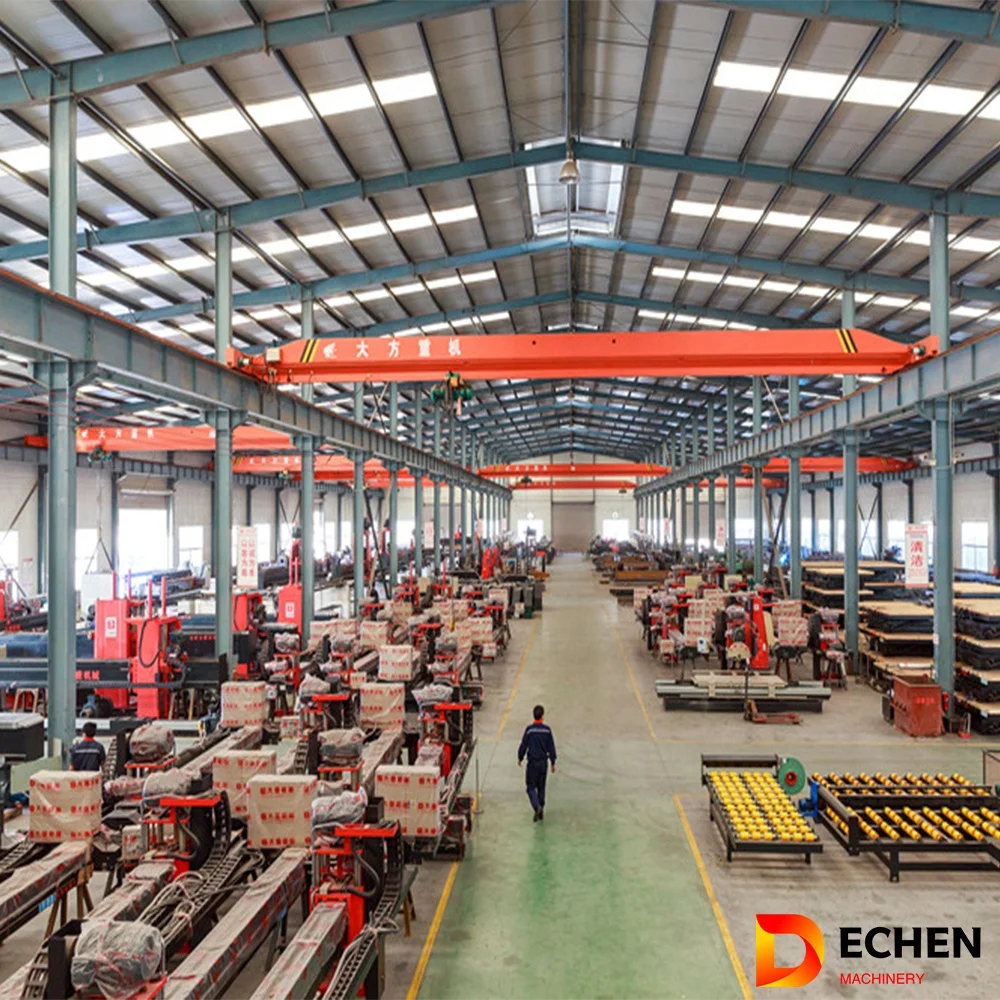

Laizhou Dechen Machinery Technology Co., Ltd is a large-scale comprehensive enterprise engaged in stone machinery with R&D, manufacture, sales and service.

The Company is located in Xiaqiu Town Laizhou City, the largest stone material base in Northern China.

Dechen stone machinery is the brand product in China’s stone industry. we export our products to the southeast Asia, Africa, South America and other dozens of countries, getting highly praise from our customers overseas it relys on the high quality, exquisite technology and perfect service system.

marble and granite cutting profile stone moulding machineedge polishing stone machinery marble profiles machine processing equipment manufacturer

Exhibition

Our company has participated in the Canton fair several times, the sino-kazakhstan trade conference and other large international conferences, and has received wide recognition and support from customers.

edge polishing stone machinery marble profiles machine processing equipment manufacturer

edge polishing stone machinery marble profiles machine processing equipment manufacturer

Packaging & Shipping

1.After the package is qualified and complete, we will use the international standard export and the customer's requirements to ensure the transport of the products.



2.We can offer different delivery terms for different quantities. (sea,express, etc.) and according to customer requirements on time delivery.

edge polishing stone machinery marble profiles machine processing equipment manufacturer

Our Services

1) Professional OEM service: motor power,color and sizes can be customized according to customer's special requirement.



2) Strong quality control: We use high quality materials and strict quality control system. Our QC department consistently operates throughout the whole product process according to related standards.



3) Competitive price and delivery in time: We are exporter based on manufacturer.  so that we can control the cost and the delivery time.



4) More professional export work: Well-trained & experienced staff are ready to provide you good service from consultation to after sales service.



5)MOQ:  One set Order accept.



6) Design: More than 20 different types of products can be supplied to you.



7) Inspection: You can inspect the shipment by third party before shipping out.



8) Refund Money: Refund money within 7 days in case of bad quality.

edge polishing stone machinery marble profiles machine processing equipment manufacturer

FAQ

1)Q: About MOQ

A: As customers’ options.



2)Q: About customization

A: ODM/OEM business partner will be warmly welcome.



3)Q: About price

A: Price is based on QTY, payment terms, time of delivery.



4)Q: How to request machine?

A: you just tell us.



5)Q: When you ship my order ?

A: Normally 15-20days after receiving final payment, but it can be negotiated if customers need urgently.



6)Q: How can you guarantee the production quality ?

A: We have strictly quality control system in our production process. All products must be double checked during every manufacturing process. Requirement of customers and quality of products will be full guaranteed.



7)Q: After I buy the machine, how I can install and operate it ?

A: We strongly suggest customer to ask our engineer to come to help you to install the machines, teach your operator how to operate and maintain the machines.



8)Q: Other problems ?

A:If you have any other questions, we have professional senior account managers who can provide services for you at any time. Click the business card below to communicate and solve your problems in time.

edge polishing stone machinery marble profiles machine processing equipment manufacturer





Send your inquiry Details in the Below for more information click "Send" Now!

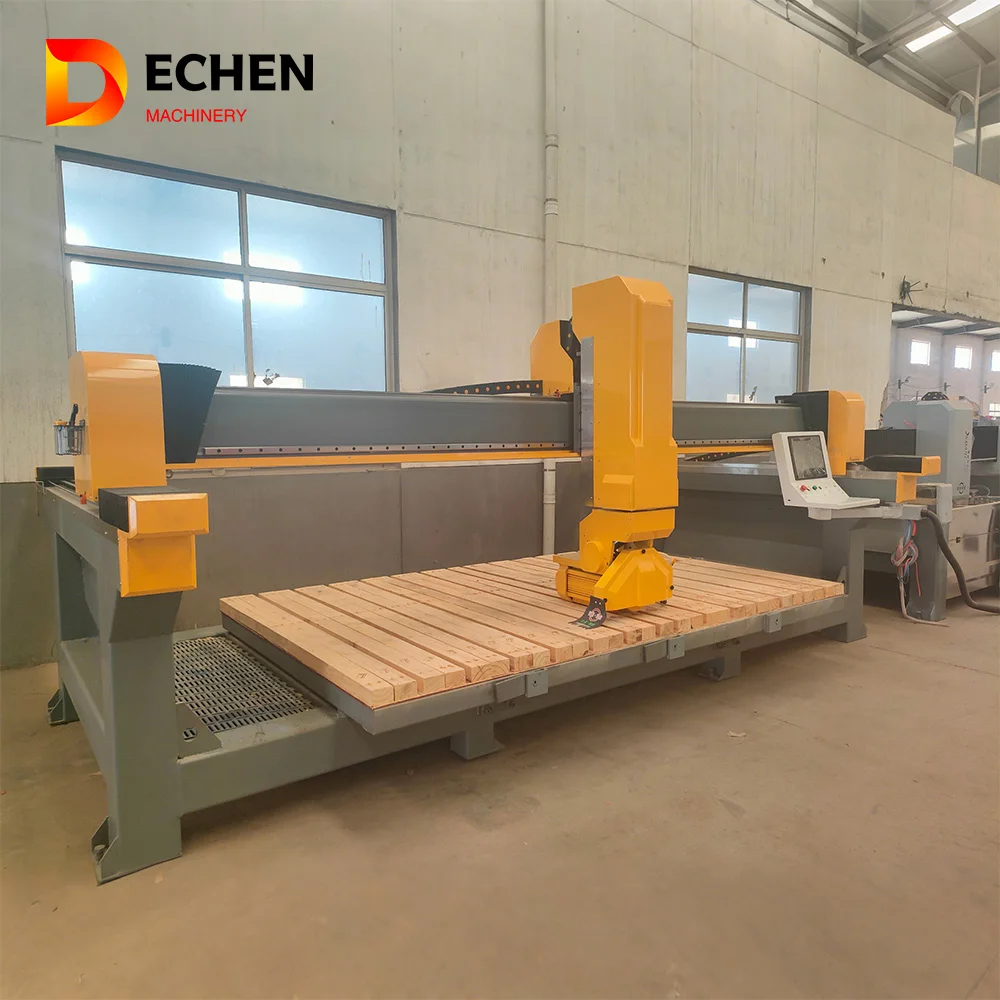

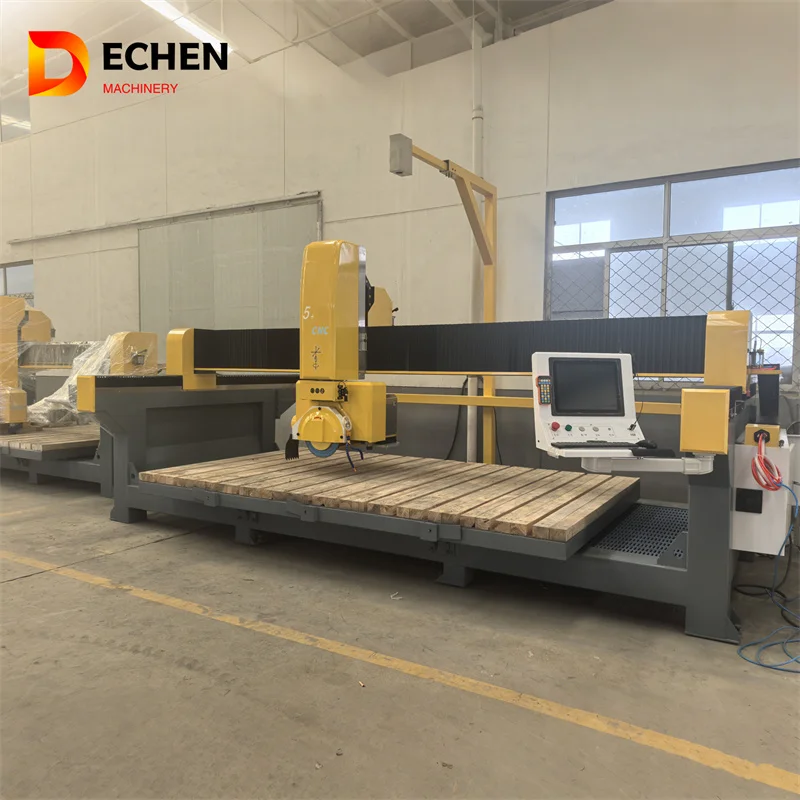

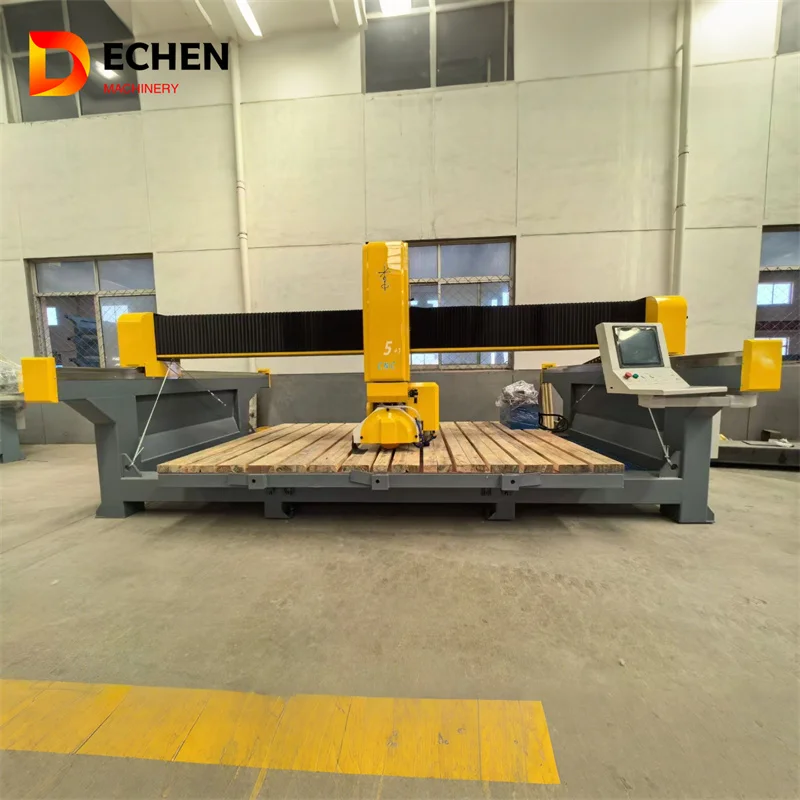

cnc stone cutting granite bridge saw machine for sale marble
